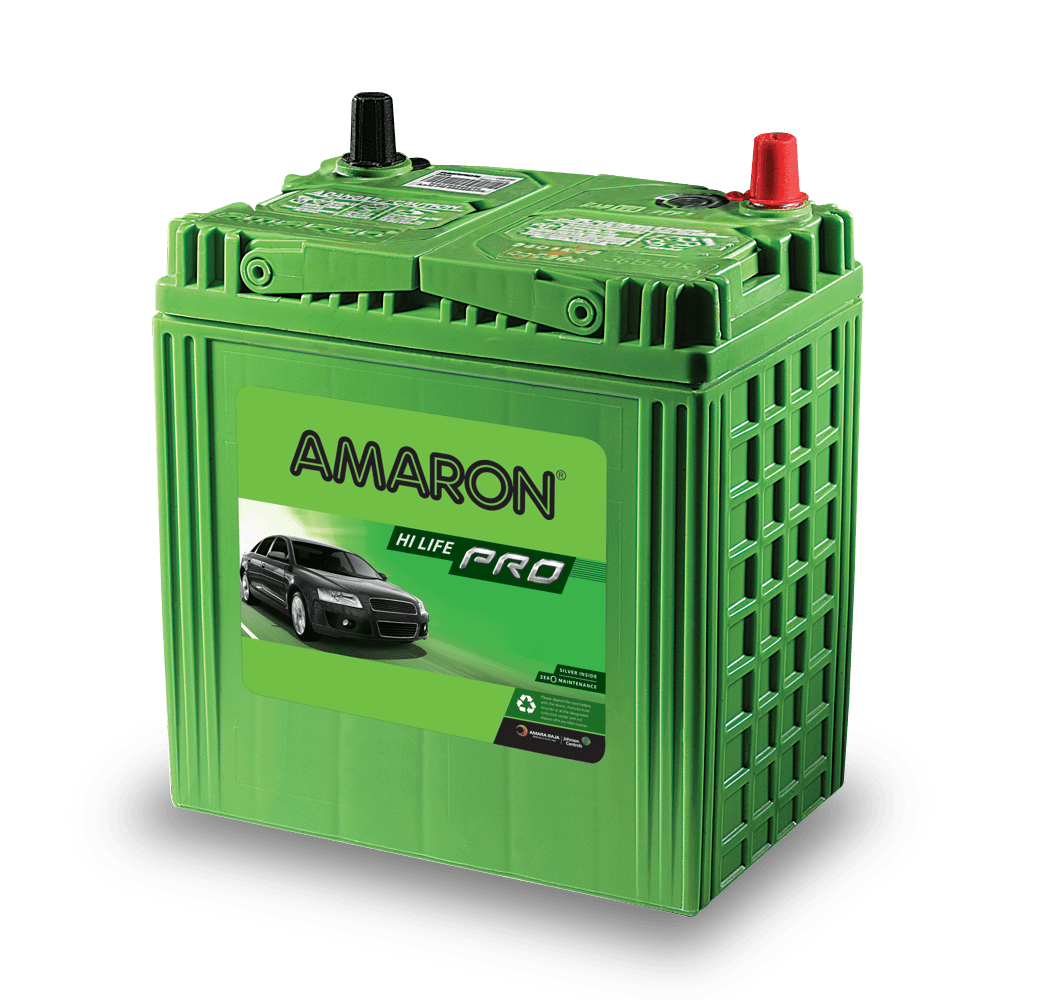

Amaron battery pro

AMARON PRO



  • Zero Maintenace
  • 24 Months Warranty
  • Long Life

Presenting Amaron™ Hi-Life batteries. It's everything a battery ought to be, and more. Amaron™ offers long life, it's also notably high-tech and totally, totally maintenance-free.


amaron-pro-specs.rar

AMARON PRO SERIES BATTERY SPECIFICATION

Amaron
Type/Model
Old JIS
Reference
PAB MA
Reference
Volt RC in min CC @ 18-deg
C in Amps
AH @C20 AH @C5 Dimension in (mm) Battery wt.
in (kg)
Terminal
Type
Terminal
Layout
Japanese Models L - W - H
65B24LS NX100-LSPMF 1SNF 12 74 420 50 40 238-192-227 13.8 Big
100D26L BH NX110-5LMF 2SMF 12 128 620 70 56 260-173-225 20.0 Big
125D31L BH 3SMF 12 165 775 95 76 306-173-225 24.2 Big
125D31R BH 3SMF /rev 12 165 775 95 76 306-173-225 24.2 Big
European Models
DIN 45 545171036 6DUU4 12 76 365 45 36 207-175-175 12.5 Big
DIN 60 560170055 6DUU5 12 109 550 60 48 242-175-175 17.5 Big
DIN 65 565106590 12 115 590 65 52 278-175-175 18.5 Big
DIN 74 574106069 6DUU6 12 131 690 74 59 278-175-190 20.0 Big
DIN 80 580122073 - 12 143 730 80 64 315-175-175 22.5 Big
DIN 100 600131090 8DUU8 12 181 900 100 80 351-175-190 26.5 Big
